IIOT Products

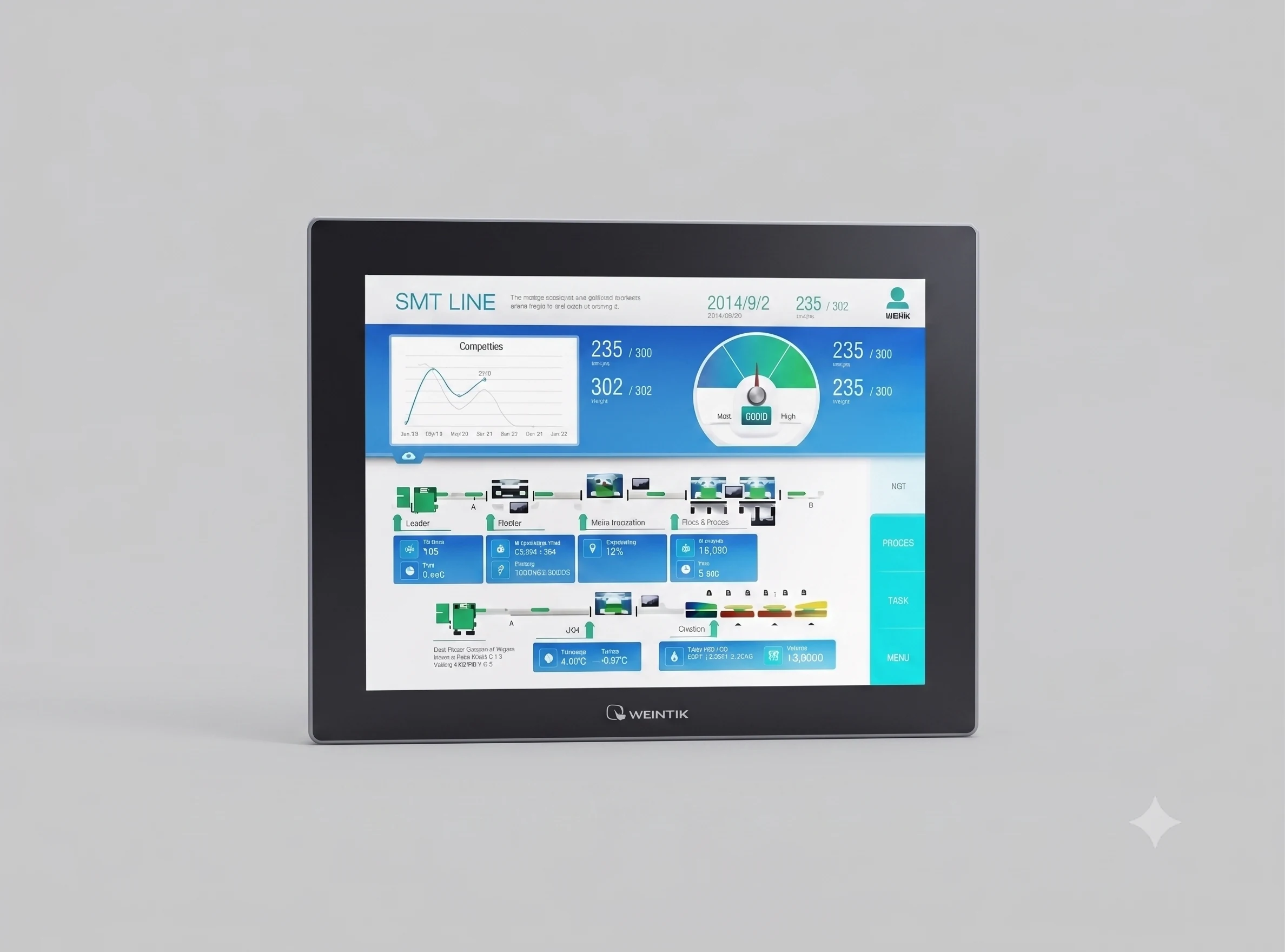

cMT1106X
Weintek 10.1" Advance HMI
Highlights
Key technical parameters and specifications for the cMT1106X Weintek 10.1" Advance HMI.
Quick Specs
Display10.1" 1024x600 TFT LCD
Colors & Backlight16.7M Colours with LED Back Light
Touch Screen4-wire Resistive type
Memory4 GB Flash and 1 GB RAM Memory
ProcessorQuad-core RISC Processor
PortsOne USB Host and Ethernet Port
COM PortsTwo COM Ports for RS-232 and RS-485 (2W/4W)
ExpansionM02 WiFi Expansion Module (Optional)
ProtectionPCB coating protections
IsolationBuilt-in Power Isolation
RTCBuilt-in RTC
Product Features
VNC Server & Viewer
USB Tethering
3G/4G Dongle Support
Email
IIOT protocol : MQTT
OPC UA Client
Optional Easy Access (Remote Access Feature)
FTP File transfer
PDF viewer
Ethernet Printer
Web Interface
Technical Documents
